John Deere 9410R Tractor Parts
Need a part or two for your John Deere 9410R? Wengers has you covered! You can click to view our full inventory of in-stock 9410R parts or jump directly the specific component you need parts for!
---- OR SELECT COMPONENT ----
John Deere 9410R History
Built in John Deere's Waterloo, IA factory, the 9410R was introduced in 2012 as part of the 9R/RT series. The tractor was equipped with the high-performance PowerTech PSX 13.5L 6-cylinder engine. It also features Efficiency Manager™ (saving you fuel) and Command View™ (allowing for increased visibilty and comfort).
John Deere 9410R Specs
Power
| Gross Engine HP | 410 hp (302 kW) |
| Max Engine HP | 451 hp (332 kW) |
| Rated PTO HP | 321 hp (239 kW) |
Engine
| Engine Model | John Deere PowerTech PSX 13.5L 6-cylinder |
| Rated Speed | 2,100 RPM |
| Displacement | 824 cu. in. |
Fuel System
| Fuel Capacity | 350 gallons |
Electrical System
| Alternator Power | 200 amps |
| Battery Volts | 12 |
| Batteries | 3 (in parallel) |
Hydraulic System
| Hydraulics type | Closed-center, pressure/flow compensated |
| Max Pressure | 2,900 PSI |
Other Specs
| 3-Point Hitch Type | Electric-Hydraulic w/ Draft Sensing |
| Wheelbase Length | 137.8 in. |
| Estimated Weight | 36,860 lbs. |
| Cab Glass Area | 70.18 sq. ft. |
| Cab Volume | 127 cu. ft. |

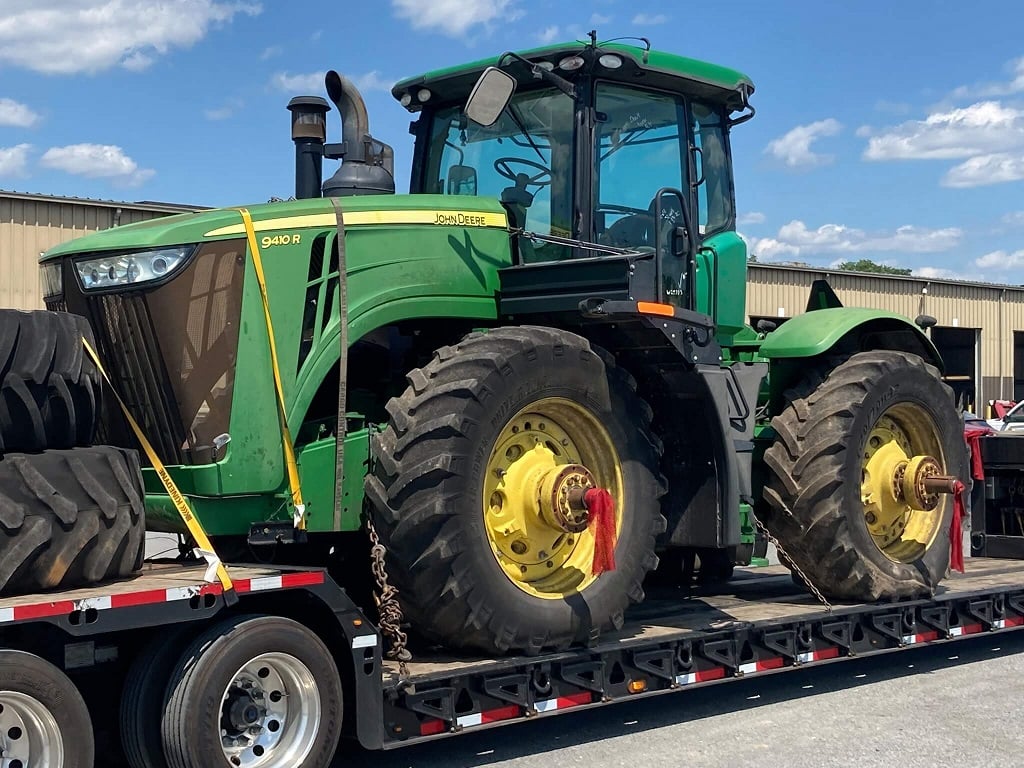

Check out the one we just dismantled...
