John Deere 2755 Tractor Parts
Keep your John Deere 2755 running strong... get your new & used 2755 parts at Wengers of Myerstown! View our whole inventory for this tractor model or drill down to a specific component below.
--- OR SELECT A COMPONENT ----
John Deere 2755 History
The John Deere 2755 tractor was first introduced in 1986 as part of John Deere's 55 series of tractors. It was designed as a mid-range tractor for farmers who needed more power than the smaller 30 series tractors, but did not require the horsepower of the larger 60 series. The 2755 was produced in John Deere's Waterloo, Iowa factory and remained in production until 1992.
The 2755 was powered by a 4.5 liter, 4-cylinder engine that produced 77 horsepower. It was available in both 2-wheel drive and 4-wheel drive configurations and came with a choice of a SyncroPlus or PowerQuad transmission. The tractor was also available with a cab, which provided greater comfort and protection for the operator.
One of the key features of the 2755 was its versatility. It could be used for a wide range of tasks on the farm, from plowing and planting to hauling and mowing. It was also known for its reliability and durability, making it a popular choice among farmers.
Over the years, the John Deere 2755 has become a collector's item for tractor enthusiasts. Its iconic design and reputation as a reliable workhorse have helped it to maintain its value and popularity among collectors and farmers alike. Despite being out of production for over 30 years, the John Deere 2755 remains a beloved tractor in the farming community.
John Deere 2755 Specs
Dimensions/Other Specs
| Cab/ROPS type: | |
| Wheelbase: | 89.2 in |
| Weight: | 6,262 - 8,192 lbs |
| Height: | |
| 3-Point Hitch Type: | |
| Final Drive: | |
| Differential Lock: | |
| Steering: | power |
| Brakes: | differential hydraulic wet disc |
Capacities
| Fuel Capacity: | 22.2 gal |
| Hydraulic Capacity: | 11.2 gal |
| Pump Flow Capacity: | |
| # of Valves: | 1-3 |
| Lift Capacity: | 4,700 lbs |
Power/Drivetrain
| Engine Model: | John Deere 3.9L 4-cyl diesel |
| Engine Power: | 88 hp |
| Engine Rated Speed: | |
| Engine Displacement: | |
| Chassis: |
4x2 2WD 4x4 MFWD 4WD |
| PTO Power: | 75 hp |
| Rear RPM: | 540 |
| Engine RPM: | |
| Fuel System Type: | |
| Hydraulics Type: | closed center |
| Transmission Type: | Synchro-Range |
| Maximum Speed: | |
| Charging System: | alternator |
| Charging Amps: |
85 (cab) 55 (ROPS) |
| Charging Volts: | |
| Battery Volts: | 12 |

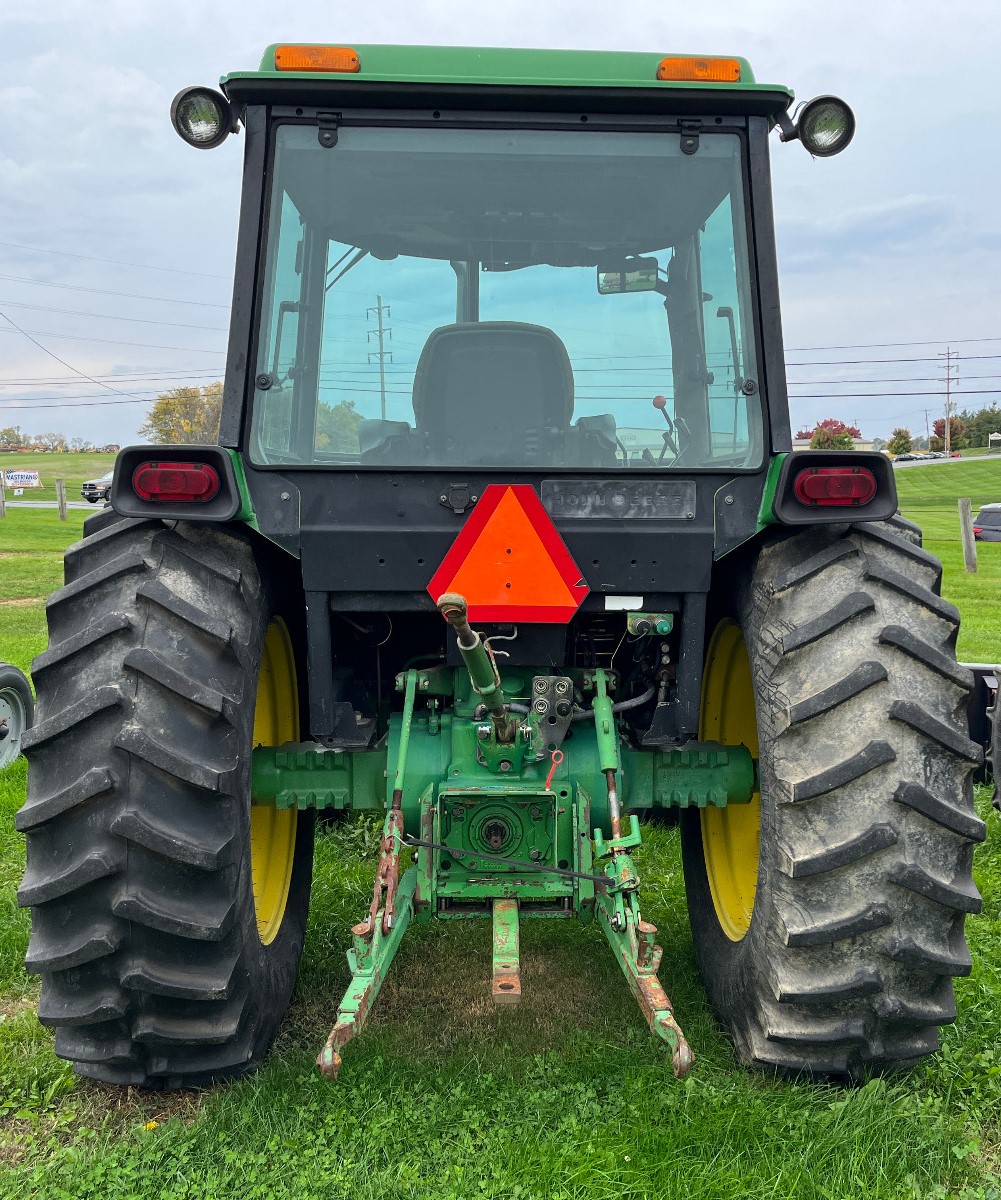

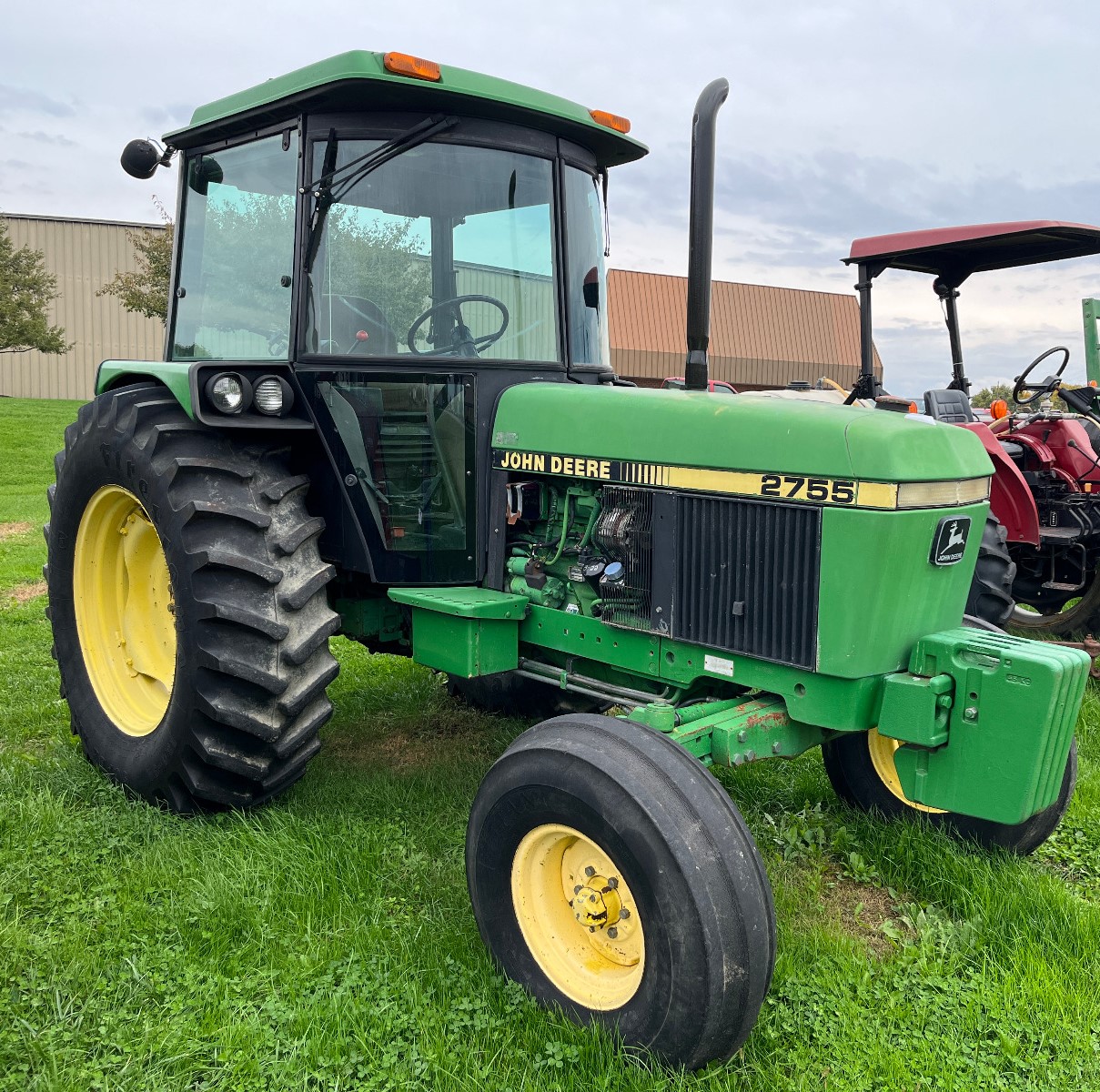

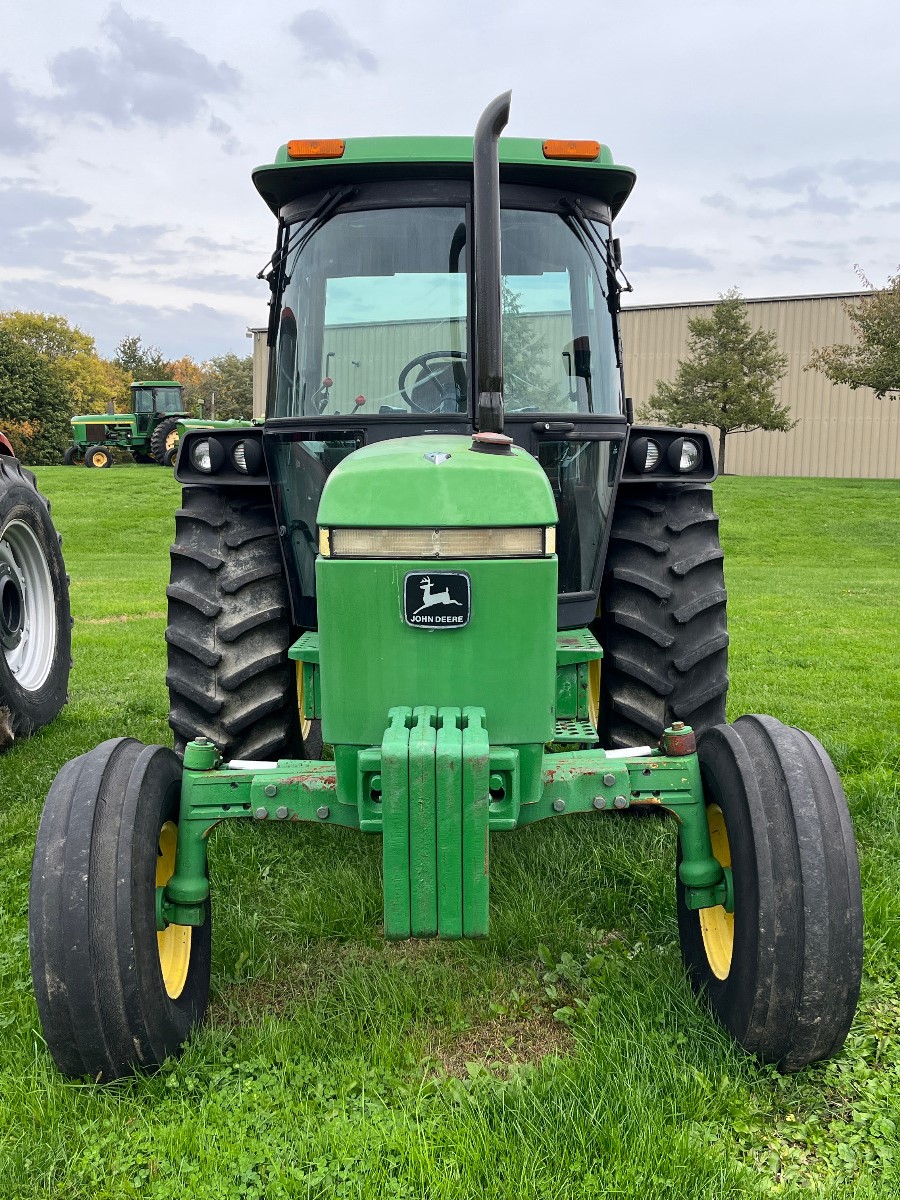

John Deere 2755 Photos
